About Us
27 years of floor screeding experience.



Sales
Get accurate quotations for your projects.



Service
Description of Service Section’s purpose and contents.



Technical
Drying times of various products and buildup example



Feedback / Testament
Feedback & Testament from our previous clients

Tarmac Cemscreed

We are proud to announce that we are licensed installers of Tarmac Cemscreed. Cemscreed is an enhanced binder that allows finishes to be applied early. The premium for this product is small in comparison to other manufacturers.

Underfloor Heating Supplies

ADH Flooring Ltd have recently secured Underfloor Heating supplies from Reliance Water Controls Ltd - one of the UK’s leading UFH manufacturers.

Feedback

The feedback we get from our customers and clients, though always very positive, helps us to improve the work we do. Because every bit of work we do is treated as though it was done at our own home, we always do a top quality job. Our customers are always very happy with the resulting floor. We get feedback, through our customers, from tilers, joiners and kitchen fitters who say they can’t believe how good the screed is and it is the best they’ve seen. It is true we do a top quality job, but we accept that there are other top quality floor screeders that also do a quality job. However not all companies will do such a quality job.

12-port-manifold-pump-station-combo

RELIANCE MANA 450 512   - 12 port manifold and blending kit

02-port-manifold-pump-station-combo

RELIANCE MANA 450 502   - 2 port manifold and blending kit

pump-pack

RELIANCE UFHC 970 302 Mixer / Blender with A Rated Grundfos Pump

Pert-Al-Pert 16mm Barrier Pipe

Pert-Al-Pert 16mm Pipe

Pert-Al-Pert Barrier Pipe

Pert-Al-Pert

Site last updated 2 February 2014

A

B

titlebackground

[ADHF] [About Us] [Services] [Floor Screed products] [FAQ Screeding] [Sales] [Sales Underfloor Heating] [Gallery] [Jobs Done]

Floor Screeding & Underfloor Heating Services

ADH Flooring Ltd are able to able to offer a large range of high end services. Not only can we install your underfloor heating system and floor screed, we can design the layout with state of the art CAD software.

Services we offer :-

Underfloor heating design service

Underfloor heating overboard system installations

Underfloor heating between joists installations

Underfloor heating in floor screed installations

Traditional sand & cement floor screed installations

Flowing / Liquid screed installations

Liquid Epoxy DPM installations

Thermal insulation & DPM Installations

Accoustic insulation to Robust Details to E-FC-4

Floor screed repair & strengthening systems using PHS

Powerfloat finished concrete& Granolithic screeds

Industrial construction joint repairs

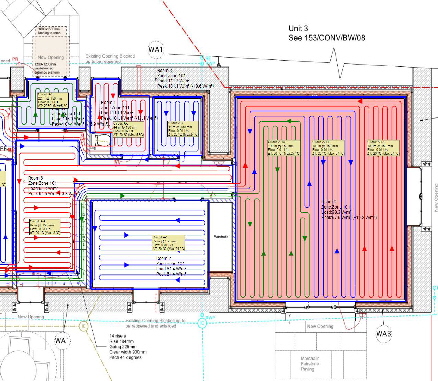

Classlochie Farm Steadings_HEat

UFH layout design service

DSC_0329

Wavin UFH clipped into thermal insulation system

Underfloor Heating Design / installations

We charge an upfront fee of £50.00 + VAT for each floor level, upto a maximum of 250m2 for UFH CAD designs. This fee will be deducted from the final invoice if we install the system.

Our UFH quotes will be based on us supplying the manifold, A rated pump mixer kit, 16x2mm aluminium barrier pipe, clips & labour (thermostats & wiring centre supplied if listed). It will be assumed that on site electrical installers will first fix wires 3 core cables from all stats to manifold. If we supply the thermostats and wiring centre it is understood that this is on a supply only basis and fitting will be done by on site electricians also. Although we can supply a heating engineer to install / connect the UFH manifold to the boiler it is assumed that this will be done by the on site heating engineer. Leaving the electrical work and manifold connection to on site engineers will keep the price down for the customer, if specifically requested we can price for these too. As commissioning the system will need to be done quite sometime after floor installation we do not include this in our price. We will guide a commission using facetime or Skype free of charge.

Traditional screeds or flowing screeds (aka liquid screeds & self-levelling screed)

Most UFH installers like to have traditional floors screeds over UFH pipes. This is because it is able to include admixtures that will accelerate drying times and reduce shrinkage by reducing the water content. It is also able to accept tiles with very little preparation - only a flexible adhesive is needed. It is also done to SR1 by quality floor screed installers and can be installed to falls in shower rooms, wet rooms & pool areas . For smaller areas and ground floor levels traditional screeds are normally more cost effective than flowing screeds. There are some new admix products that are soon to be able to allow traditional screeds to be applied at floating depths of 40mm.

A large majority of plumbers & heating engineers who occasionally install UFH will recommend flowing screeds over UFH pipes. This is normally because they were told it is thermally more efficient than traditional screed as it conducts the heat better. Recent tests by several admix manufacturers have cast a lot of doubt over this and it appears that traditional screed is much thermally efficient. Flowing screeds are mainly gypsum binder based (Anhydrite) and can react badly if cement based tile adhesive is applied. There are adhesives on the market that are designed to be compatible with flowing screeds such as Gypfix. Flowing screeds do have their uses especially where screeds depths are unbonded under 50mm or floating under 65mm. They are also sometimes much more cost effective if the location of the floor is quite difficult to access using traditional methods. Flowing screeds are normally done to SR2. Flowing screeds are more cost effective in large, thinner areas above ground floor.

ADH Flooring Ltd will install either type of screed.



Floor Screeding Contractor for Derbyshire Screeding Leicestershire Screeding Lincolnshire Screeding Nottinghamshire Screeding Yorkshire Screeding UK Screeding Derbyshire screed Leicestershire Screed Lincolnshire Screed Nottinghamshire Screed Yorkshire Screed UK Screed Barnsley Screeding Chesterfield Screeding Derby Screeding Doncaster Screeding Grantham Screeding Hull Screeding Leicester Screeding Lincoln Screeding Mansfield Screeding Newark Screeding Nottingham Screeding Retford Screeding Rotherham Screeding Sheffield Screeding Wakefield Screeding Worksop Screeding Underfloor Heating Under floor Heatmiser



badge

contact@adhf.co.uk

Tel. 01909 489915

UFHCsm

Links



www.screeding.org



www.screeding.net



www.screeding.org.uk



www.floor-screeding.org.uk



www.adhf.co.uk



Underfloor Heating Controls

Complete Underfloor Heating and Floor Screeding Package for 100m2. Inclusive of Reliance 7 port stainless steel manifold, 700m of 16mm Pert-Al-Pert pipe, 7x Actuators, 6x Heatmiser PRT programmable LCD room thermostats, Heatmiser UH3 wiring centre and 75mm of traditional fibre-screed done to the highest standard, within 150 miles of Worksop, Nottinghamshire for:-

£3,400.00 + VAT for PRT

£3,520.00 + VAT for PRT-TS

£3,800.00 + VAT for PRT-TS WiFi

See below:-

PRT

PRT Programmable Room Thermostat.            Click image to go to our online shop

£ 37.50 + VAT

PRT-TS

PRT-TS Touchscreen Programmable Room Thermostat. Click image to go to our online shop

£ 55.00 + VAT

PRT-TS WIFI

PRT-TS WiFi Touchscreen Programmable Thermostat for iPod/iPad/iPhone control.   Click image to go to our online shop

£ 109.00 + VAT

iPad
iPod
